RS53205

High-Density 3A Buck Converter for High-Performance Embedded Systems

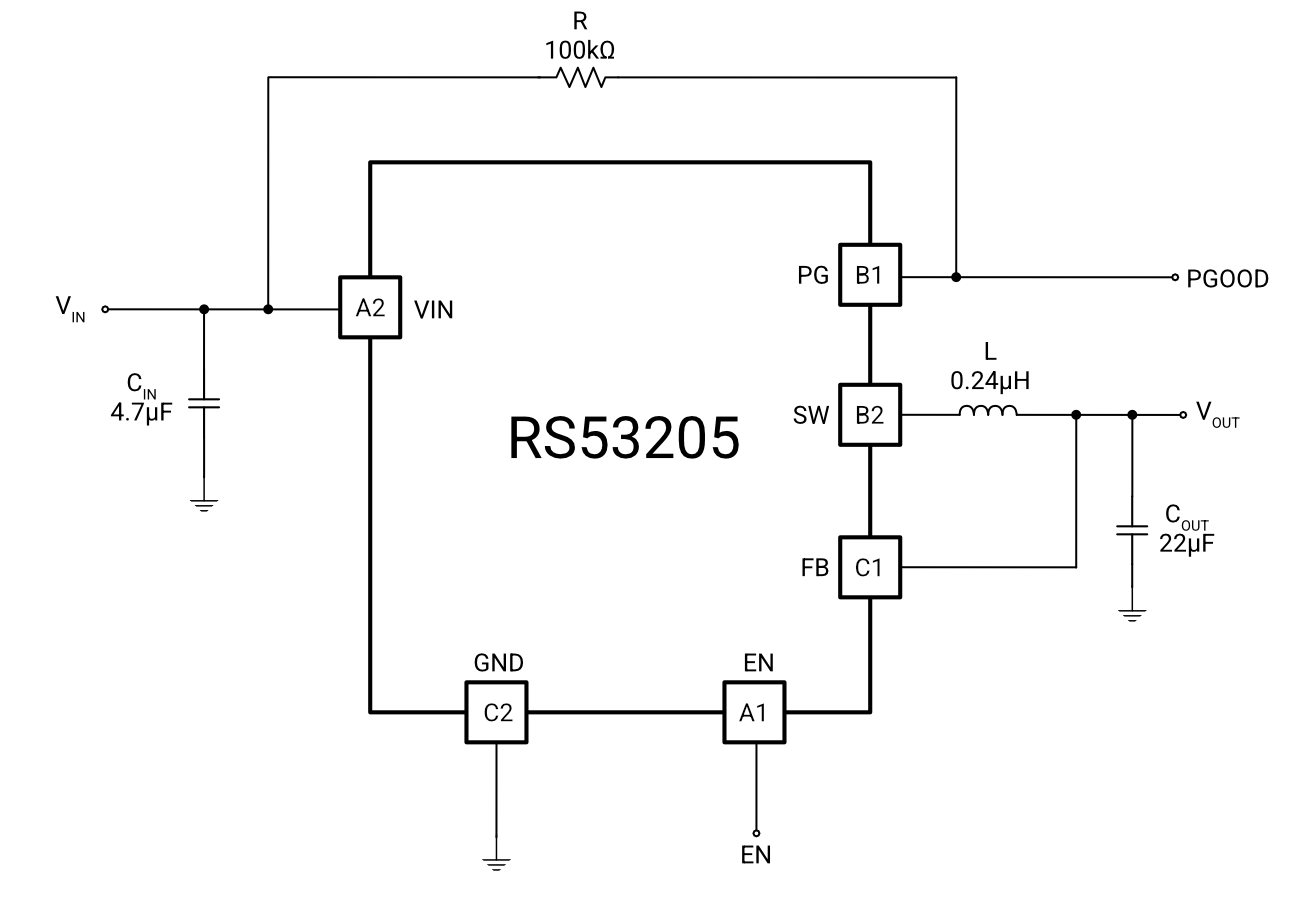

The RS53205 is a high-efficiency 3A synchronous buck converter designed for applications requiring maximum power density, fast transient response, and compact PCB layouts. Utilizing Constant-On-Time (COT) control, the device delivers excellent dynamic performance while supporting switching frequencies up to 4MHz, enabling the use of smaller inductors and capacitors to reduce overall solution size.

Operating from a 2.4V to 5.5V input voltage range, this converter is well suited for powering processors, FPGAs, SSDs, optical modules, wireless chipsets, and industrial embedded systems where high current capability and minimal board space are essential.

Packaged in a tiny 0.8mm × 1.2mm 6-ball WLCSP, it integrates low-loss MOSFETs, flexible operating modes, and comprehensive protection features into a highly compact Point-of-Load (POL) solution.

---

Deliver More Power in Less Space

Today’s embedded and portable electronics continue to demand higher current while shrinking available PCB area. High switching frequency, integrated MOSFETs, and Constant-On-Time control allow designers to achieve outstanding power density without sacrificing transient performance or efficiency.

Fast Dynamic Response

Constant-On-Time (COT) control reacts quickly to rapidly changing load currents, helping maintain accurate output voltage for processors, FPGAs, memory devices, and high-speed digital circuits.

High Switching Frequency

Supporting switching frequencies up to 4MHz, the converter enables the use of smaller inductors and capacitors, reducing both solution size and component height for space-constrained designs.

---

Flexible Power Conversion for Modern Electronics

Designed for a broad range of portable, industrial, and embedded applications, the device combines wide input voltage support with flexible operating modes and simplified output voltage selection.

Wide Operating Range

Supporting 2.4V to 5.5V input voltages, the converter can operate from USB supplies, regulated intermediate rails, and single-cell lithium-ion battery systems.

Selectable Operating Modes

Designers can optimize performance for their application by selecting:

• Automatic PFM/PWM mode for maximum light-load efficiency.
• Forced PWM mode for applications requiring constant switching frequency and reduced output ripple.

Factory-Programmed Output Voltages

Five preset output voltage options simplify design and reduce external component count:

• 0.6V
• 1.2V
• 1.8V
• 2.5V
• 3.3V

---

Integrated Protection for Reliable Operation

Built-in protection features improve overall system reliability while minimizing additional external circuitry.

Comprehensive Protection Features

Integrated protection includes:

• Overcurrent protection (OCP)
• Short-circuit protection (SCP)
• Power Good (PG) output
• Output discharge function

These features simplify power supply design while helping protect both the converter and downstream circuitry.

High-Efficiency Integrated MOSFETs

Integrated 26mΩ high-side and 26mΩ low-side MOSFETs reduce conduction losses, improve efficiency, and eliminate the need for external switching devices.

---

Ultra-Compact WLCSP Package

The tiny 0.8mm × 1.2mm 6-ball WLCSP allows designers to maximize usable PCB space without compromising electrical performance.

Combined with integrated power switches, high-frequency operation, and minimal external components, this compact package makes the converter ideal for smartphones, wearable electronics, industrial modules, optical transceivers, SSDs, and other high-density designs.

---

Part of Reed’s Compact Buck Converter Family

The RS53205 is the highest-current member of Reed Semiconductor’s family of compact synchronous buck converters. All three devices share the same architecture, package, operating modes, and protection features, allowing designers to scale output current while maintaining a common PCB design philosophy.

Using a common architecture across the family simplifies qualification, inventory management, and future product upgrades while providing current options from 1A to 3A.

---

Explore Reed’s Point-of-Load Power Solutions

The RS53205 complements Reed Semiconductor’s expanding portfolio of Point-of-Load power solutions, including digital PMBus™ regulators, multiphase controllers, Smart Power Stages, and Power Blocks for applications ranging from portable consumer electronics to AI servers, networking infrastructure, and industrial automation.
