RS53203

High-Density 1A Buck Converter for Space-Constrained Designs

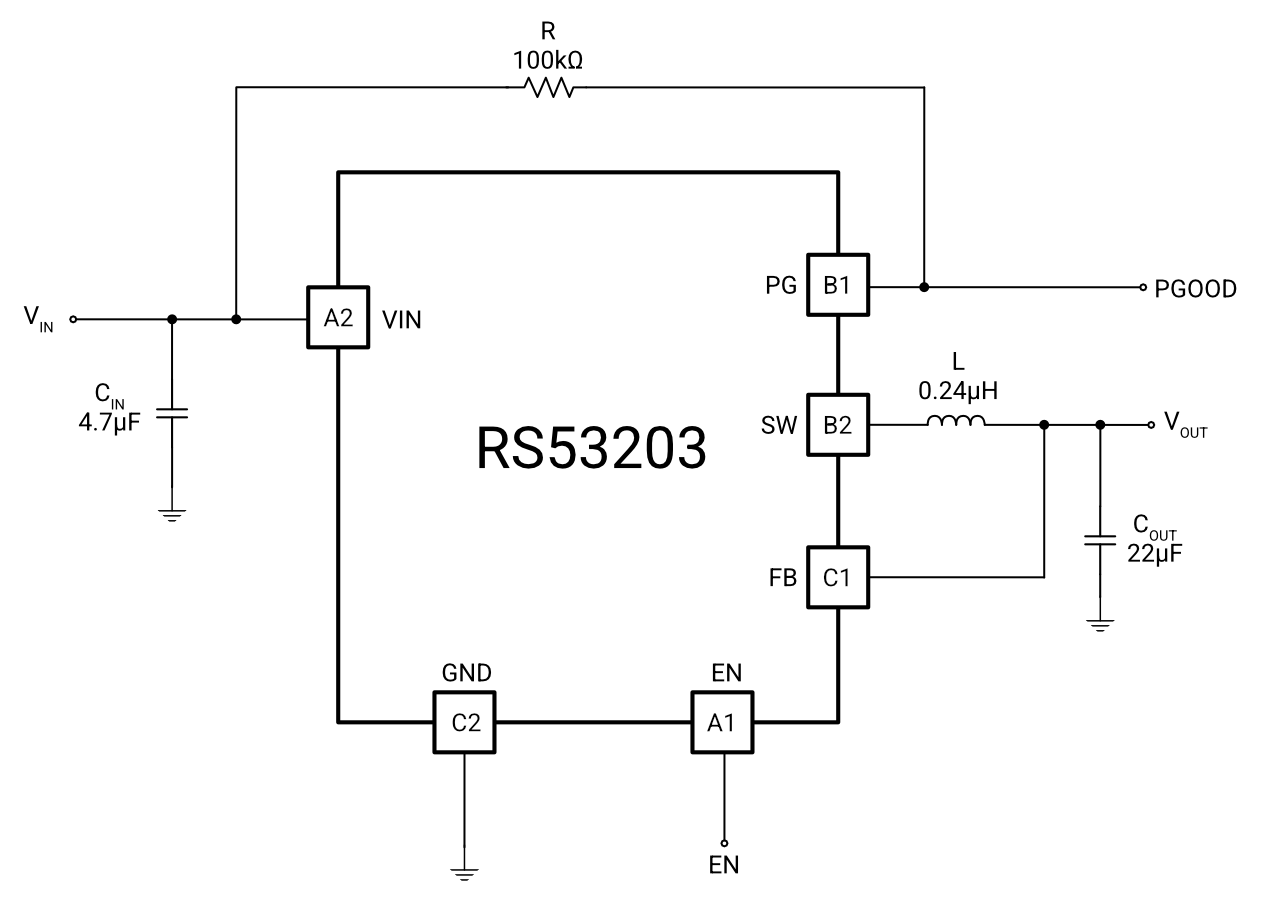

This is a high-efficiency 1A synchronous step-down converter optimized for compact, high-density power designs. Featuring Constant-On-Time (COT) control, the device delivers excellent transient response while supporting switching frequencies up to 4MHz, enabling the use of smaller inductors and capacitors to reduce overall solution size.

Operating from a 2.4V to 5.5V input voltage range, the RS53203 is ideal for powering FPGAs, processors, wireless modules, optical modules, image sensors, and portable electronics where PCB space is limited and fast dynamic performance is essential.

Packaged in a tiny 0.8mm × 1.2mm 6-ball WLCSP, the RS53203 provides a compact, highly integrated power solution for next-generation consumer, industrial, and embedded systems.

---

Why Choose the RS53203?

Today’s portable and embedded electronics demand efficient power conversion, fast transient response, and minimal PCB area. The RS53203 combines high switching frequency, integrated MOSFETs, and Constant-On-Time control to reduce component count while delivering stable performance across dynamic load conditions.

Fast Transient Response

The Constant-On-Time (COT) control architecture responds quickly to sudden load changes, helping maintain stable output voltage for processors, wireless chipsets, and other dynamic digital loads.

High-Density Power Solution

Operating at switching frequencies up to 4MHz, the RS53203 enables the use of smaller external inductors and capacitors, reducing total solution size while maintaining excellent efficiency.

---

Key Features

Wide Input Voltage Range

Accepts 2.4V to 5.5V input voltages, making it suitable for USB-powered equipment, regulated intermediate rails, and single-cell lithium-ion battery applications.

Up to 1A Output Current

Capable of delivering up to 1A of continuous output current, to efficiently powers processors, sensors, memory, wireless modules, and other low-voltage digital circuitry.

Flexible Operating Modes

The RS53203 is available in two operating modes to support a wide range of applications:

• Automatic PFM/PWM mode for high efficiency over varying load conditions.
• Forced PWM mode for noise-sensitive systems requiring constant switching frequency.

Multiple Preset Output Voltages

Factory-programmed feedback options simplify system design by minimizing external components.

Available output voltage options include:

• 0.6V
• 1.2V
• 1.8V
• 2.5V
• 3.3V

---

Integrated Protection and Reliability

The RS53203 incorporates essential protection features to improve system reliability and simplify power supply design.

Comprehensive Protection

Integrated protection features include:

• Overcurrent protection
• Short-circuit protection
• Power Good output
• Output discharge function

These integrated functions help protect the converter and downstream circuitry while reducing external component count.

Low-Loss Integrated MOSFETs

Integrated 26mΩ high-side and low-side MOSFETs reduce conduction losses and improve efficiency without requiring external power switches.

---

Ultra-Compact WLCSP Package

Available in an ultra-small 0.8mm × 1.2mm 6-ball WLCSP, the RS53203 enables extremely compact PCB layouts for applications where every square millimeter matters.

The combination of a tiny package, high switching frequency, and minimal external components makes the RS53203 an excellent solution for high-density power architectures.

---

Part of the RS53203/RS53204/RS53205 Family

The RS53203 is the 1A member of Reed Semiconductor’s compact high-frequency buck converter family. All three devices share the same architecture, package, and feature set while offering different output current capabilities to simplify product scaling.

Using the same footprint and architecture across the family allows designers to scale power capability with minimal PCB redesign, reducing development time and simplifying inventory management.

---

Explore Reed’s Point-of-Load Power Solutions

The RS53203 is part of Reed Semiconductor’s expanding portfolio of Point-of-Load (POL) power solutions for consumer, industrial, communications, and AI applications. The pin-compatible RS53204 (2A) and RS53205 (3A) provide higher output current using the same high-performance architecture, allowing designers to scale power capability while maintaining a consistent design approach.

For higher-current applications, Reed Semiconductor also offers integrated synchronous buck converters, PMBus™ digital regulators, multiphase controllers, Smart Power Stages, and Power Blocks that support everything from portable electronics to high-performance AI and networking systems.
