RS31211 - Simple 3.3V 4A eFuse Protection Switch

RS31211 3.3V, 4A eFuse for Intelligent Low-Voltage Power Protection

Modern digital systems rely on clean, reliable 3.3V power rails to supply processors, FPGAs, memory, storage devices, and peripheral interfaces. The RS31211 is a compact, integrated 3.3V eFuse that protects sensitive downstream circuitry from overcurrent, overvoltage, and overtemperature faults while minimizing power loss, PCB area, and external component count.

Designed for 3.3V distributed power rails, the RS31211 integrates a low 34mΩ pass MOSFET, adjustable 0.5A to 4A current limiting, programmable output slew rate, adjustable input undervoltage lockout (UVLO), and a fixed 3.8V output overvoltage clamp into an ultra-small 2 × 2 mm WSON-8 package. The result is a simple, highly integrated protection solution for space-constrained electronic systems requiring reliable power-path protection.

Intelligent Protection for 3.3V Digital Power Rails

Sensitive digital electronics require fast, reliable protection from abnormal operating conditions. The RS31211 continuously monitors the power path and actively protects downstream circuitry before permanent damage can occur.

Integrated protection features include:

• Adjustable 0.5A to 4A current limit
• Fixed 3.8V output overvoltage clamp
• Overtemperature protection
• Programmable input UVLO
• Adjustable output slew-rate control
• Logic enable input for power sequencing

Together, these features improve system reliability while reducing the number of external components required for robust circuit protection.

Compact Protection Without Compromising Efficiency

Board space is often one of the most valuable resources in today’s embedded and computing platforms. The RS31211 integrates a low-resistance 34mΩ pass MOSFET, current limiting, fault protection, and startup control into a tiny 2 × 2 mm WSON package, allowing designers to implement comprehensive protection with minimal PCB area.

The integrated solution helps:

• Reduce component count
• Improve system efficiency
• Minimize voltage drop
• Lower thermal dissipation
• Simplify PCB layout

Programmable Startup and Inrush Current Control

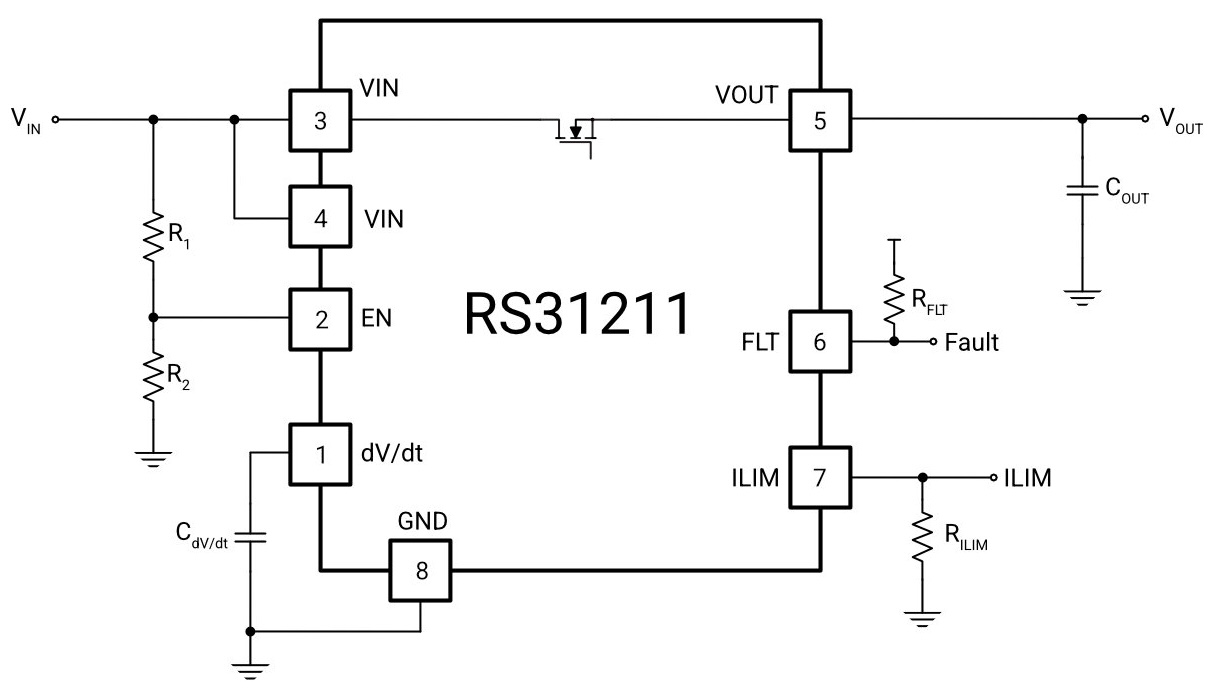

Large output capacitors can generate significant inrush current during power-up. The RS31211 allows designers to program the output slew rate using a single external capacitor connected to the dV/dt pin, providing controlled startup and reducing stress on both the power supply and downstream circuitry.

Combined with programmable current limiting and UVLO, the device enables designers to:

• Limit inrush current
• Improve hot-plug reliability
• Prevent nuisance trips
• Sequence multiple power rails
• Protect upstream power supplies

This flexibility makes the RS31211 well suited for systems with sensitive digital loads or complex startup requirements.

Flexible Protection Options

The RS31211 family is available with multiple protection options to accommodate different system requirements:

• RS31211A – Latch-off fault response
• RS31211B – Auto-retry fault response
• RS31211D – Auto-retry with Quick Output Discharge (QOD)

These options allow designers to select the fault response that best matches their application while maintaining the same compact footprint and electrical characteristics.

Ideal Applications

The RS31211 is designed for protecting low-voltage power rails in a wide variety of electronic systems, including:

• FPGA and processor power rails
• Memory power supplies
• PCI and PCIe cards
• Server auxiliary supplies
• Solid-state drives (SSD)
• Hard disk drives (HDD)
• Industrial control systems
• Embedded computing platforms
• Adapter-powered electronics

Part of Reed Semiconductor’s eFuse Family

The RS31211 belongs to Reed Semiconductor’s family of compact eFuses optimized for different system voltages and protection requirements.

By sharing a common architecture across multiple voltage options, the family enables designers to standardize on a single protection approach while selecting the device best suited to each power rail.

Why Choose the RS31211?

The RS31211 combines low-loss power delivery, programmable protection, and an ultra-compact footprint into a highly integrated solution for 3.3V power rails. With adjustable current limiting, controlled startup, integrated overvoltage protection, and selectable latch-off or auto-retry operation, it helps designers improve system reliability while reducing PCB area and design complexity.
